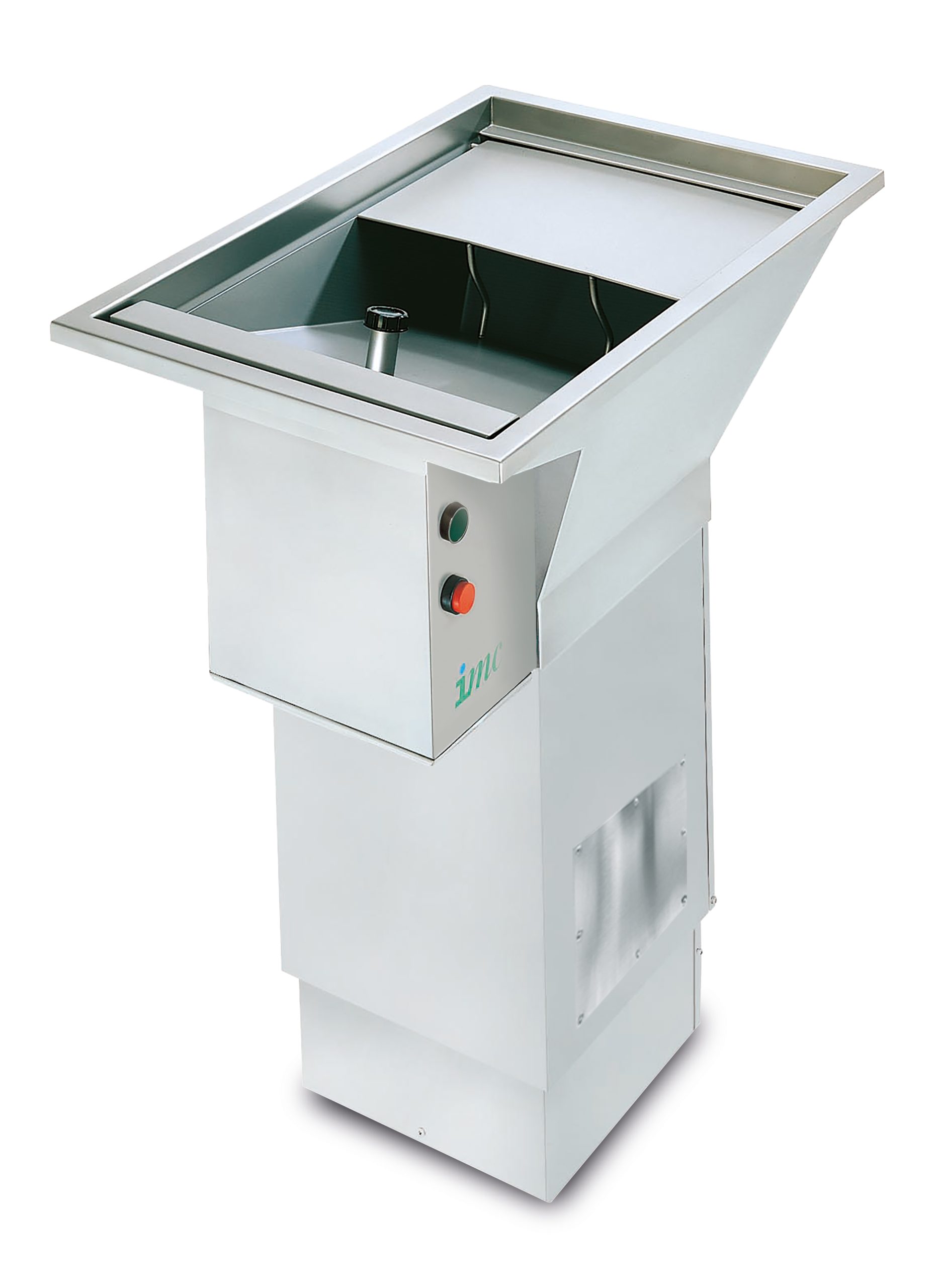

IMC Vulture 1604X Floor-mounted Food Waste Disposer – 3 Phase [5 wire] [air break] – W 514 mm – 4.0 kW

F54/729 – Reliable, efficient, safe and easy to operate, the 1604X Waste Disposer allows operators to quickly and effectively remove waste, to create a safer…

Features & Benefits Overview

  • Fast and efficient disposal of up to 900kg of food waste per hour.
  • Handles up to 1850 covers per sitting – ideal for large kitchens.
  • For tough waste (red meat bones, cauliflower stalks and fish skins).
  • Free-standing design, but can be welded into tabling with E30/096 hopper rim.
  • Manually reversible motor to extend operational life.
  • Low-load cut-outs ensure energy and water efficiency.
  • Fitted with a with class A airbreak kit, recommended for when connecting to a mains water supply.
  • Suitable for large kitchens with three-phase, five-wire power supply.

£8,728.99 Exc. VAT

Details

Fast and efficient, the 1604X Waste Disposer with airbreak is able to dispose of 900kg of food waste per hour and handles up to 1850 covers per sitting, making it ideal for larger hotels, hospitals, universities, prisons and food preparation companies.

An advanced version of the 1604 model, the 1604X is able to switch itself off to save energy and has an automatic rinse function, to prevent nasty odours.

It is suitable for tough waste – red meat bones, cauliflower stalks and fish skins. The free-standing unit can be welded into tabling with a E30/096 hopper rim, for quick loading.

The stainless steel 1604X Waste Disposer is easy to clean and also features interlocks, for operator safety. Low-load cut-outs provide energy and water efficiency, whilst reversible motors extend the unit’s operating life.

Specifications

Energy Type

Electric

Installation Type

Freestanding

GTIN

5056105199175

Kilowatts

4

Control Type

On/Off

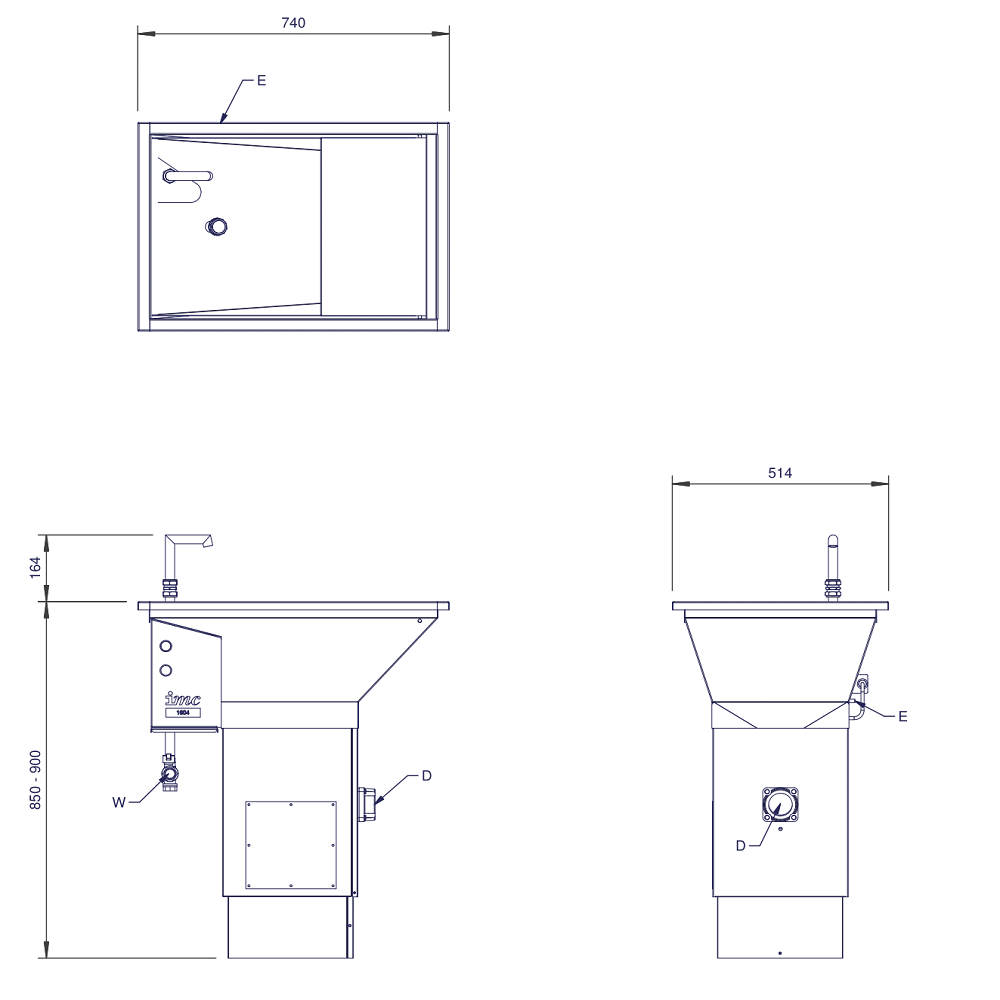

Product Height (mil)

1,014

Product Width (mil)

514

Product Depth (mil)

740

Product Weight (kilogram)

85.50

Professional Installation Required

Yes

Electrical Connection Type

Direct Hardwired

Electrical Watts

4000 WATT

Electrical Phase

Three

Electrical Voltage

400V

Ship Weight (kilogram)

94.05

Ship Height (centimeter)

105

Ship Width (centimeter)

79

Ship Depth (centimeter)

54

Water Line Required

True

Water Connection Source Type

Water Main

Water Inlet Size

22

Drain Line Required

True

Drain Outlet Size

2

Motor Power (horsepower)

5.40

Waste Types Processed

Tough (all red meat bones, cauliflower stalks, fish skins)

Waste Processing Capacity Per Hour: Weight (kilogram)

900

Meal Waste Servings Processed Per Sitting

1850

Drip Pan

False

Operator Safety Method

Interlock

Weight 94.05 kg
Dimensions (HWD) 1050 × 790 × 540 mm
Brand IMC
Range Vulture
Series 04X Series
Power Source Hard-wired
