Classeq G500DUO-3ph Glasswasher

  • 3 phase 12 amp/ph
  • 500mm basket
  • Water Board (WRAS) Compliant
  • Pumped Drain

Two wash programs
Intuitive LCD digital display
Digitally controlled detergent & rinseaid pumps
Rinse booster pump
Double lined cabinet & door
Colour coded display



£2,315.99 Exc. VAT

Details

Classeq G500DUO-3ph Glasswasher

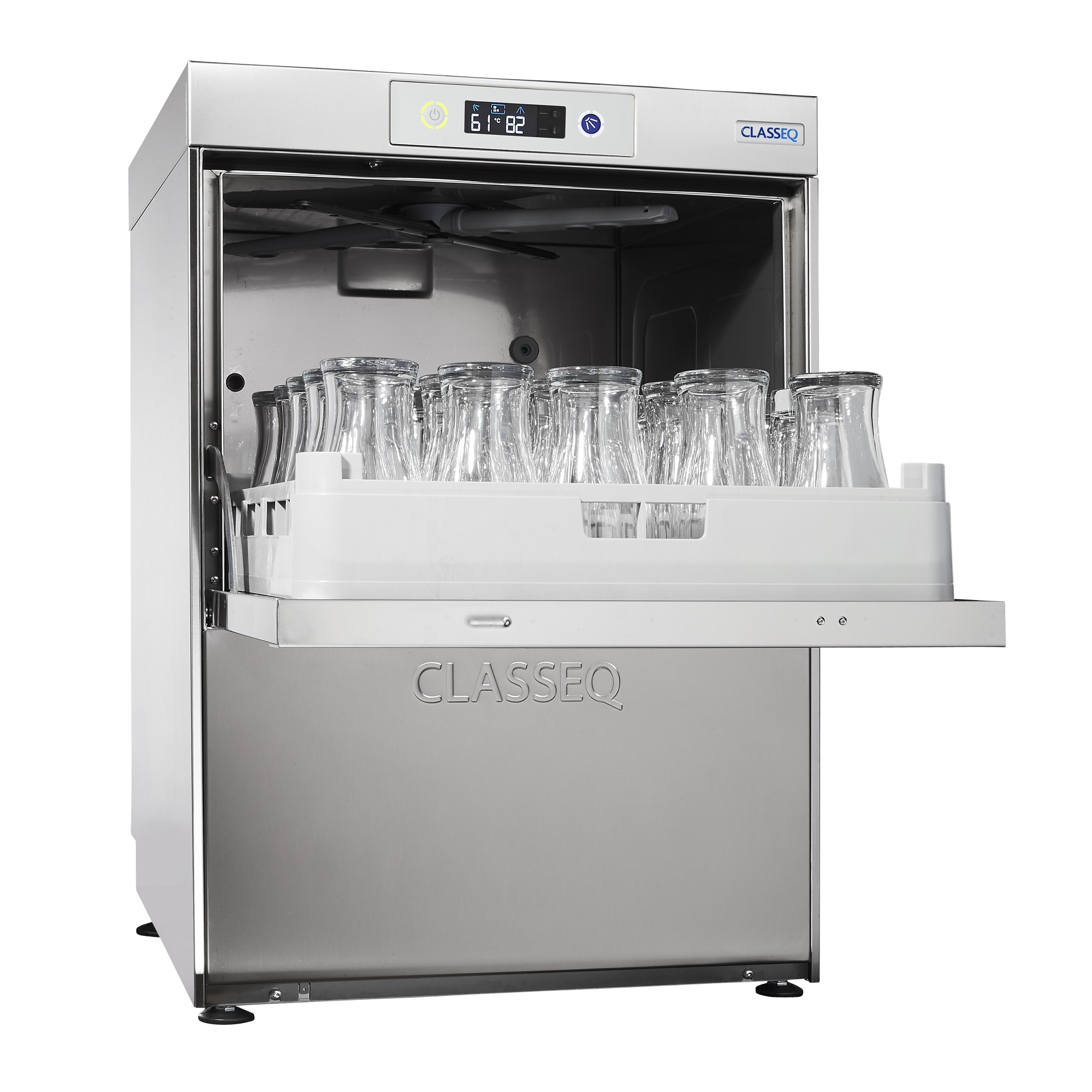

The Classeq G500DUO-3ph glasswasher is a WRAS Approved front-loading 3 phase commercial glass washer with a powerful 6kW boiler element for increased performance. Designed for busy bars this machine holds up to 30 pint glasses at a time and with a clear entry height of 343mm you will be able to wash even the tallest of pint glasses.

Manufactured

Classeq glass washers are manufactured in Staffordshire to a very high standard and has a double skinned cabinet & door to reduce heat loss and noise.

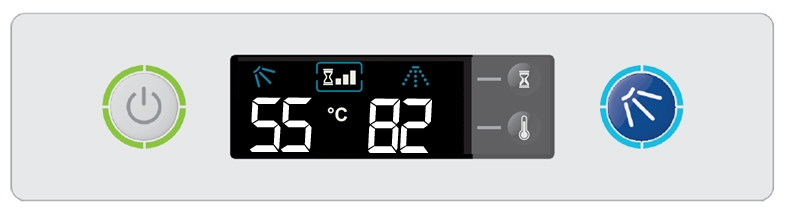

This impressive UK built machine has a digital control panel clearly displaying running temperatures in both the rinse tank and the wash tank. The user has the option of a 2 or 1 minute wash cycle and with a simple two button, user-friendly switch arrangement, makes operating this appliance extremely easy for staff. Clever software constantly monitors water usage, temperature, chemical levels and the number of wash cycles giving valuable information to improve operational efficiencies. Colour coded display for easy wash cycle management. (Amber flashing – Machine heating), (Blue – Machine in cycle), (Green – Machine ready).

Features

Featuring an integral rinse pump which boosts the rinse pressure keeping the rinse cycle and rinse temperature constant ensures excellent rinse performance and hygienic sanitation of glassware.

Via the control panel you have the option of switching on temperature interlocks which guarantees specific temperatures are reached during washing, giving absolute peace of mind that your customers are protected from germs & viruses.

Digitally controlled detergent and rinseaid pumps, which can be set ml per ltr, allow for very accurate chemical dosing which is why this machine is capable of producing exceptional wash results as well as promoting a good looking fresh pint of beer.

The G500DUO-3ph is pump drained therefore no need to pull out a drain plug at the end of the day, just switch off and press the button, the machine will automatically drain down. The built-in drain pump also significantly reduces problems at install if your sites waste pipe is too high for a gravity drain appliance.

If you’re looking for a hard working 500mm basket commercial glasswasher on a 3 phase electrical supply (12amps per phase) then the Classeq G500DUO-3ph glasswasher is the best option by a long way.

Specifications

Weight 66.6 kg
Dimensions (HWD) 830 × 570 × 605 mm
Amps Required 12A 3 Phase
Basket Size 500 mm
Basket Supplied 2
Brand Classeq
Clear Entry Height 343 mm
Depth Door Open 987 mm
Drain Size 40mm
Empty Weight 54.7 kg
Finish Stainless Steel
Fully Loaded Weight 75.2 kg
Min. supply water pressure 0.5 bar
Operating Voltage 380-415V/3N/50Hz
Power Source Hard wired
Water supply connection G3/4” (3/4” BSP)
Wash Tank Element 2 kW
Wash Tank Capacity 14.33 Ltr
Wash Pump Power 0.58 kW
Warranty 2 years Parts & Labour
Total Connected Load 6580 Watts
Rinse Water Consumption at 3 bar 3 Litres / Cycle
Rinse Tank Element 6 kW
Rinse Tank Capacity 7.5 Ltr
Required Water Flow Rate 11 Ltr / min
Glasses per Rack 25 – 30 depending on glass size
Gravity Drain No
Built-in Drain Pump Yes
Built-in Rinse Booster Pump Yes
Built-in Water Softener No
Built-in Detergent Pump Yes
Built-in Rinseaid Pump Yes
