Classeq G500P-3ph Digital Glasswasher

  • 500mm basket
  • Type ‘B’ Air Gap
  • Pumped Drain

Two wash programs
Intuitive LCD digital display
Digitally controlled detergent & rinseaid pumps
Colour coded display

£2,139.99 Exc. VAT

Details

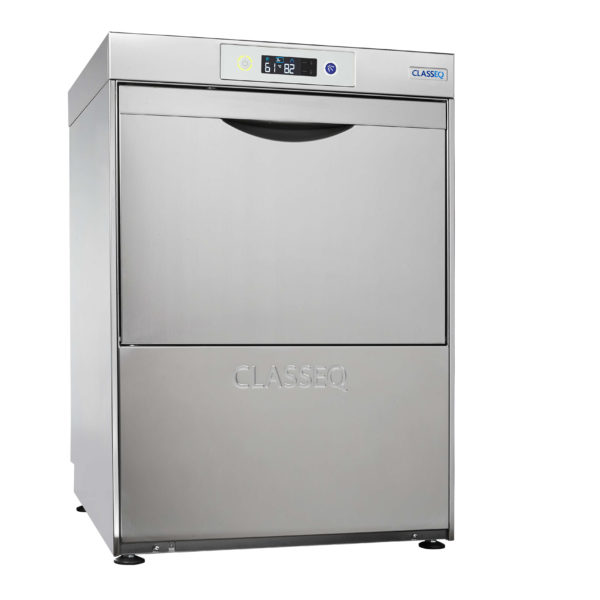

Classeq G500P-3ph Digital Glasswasher

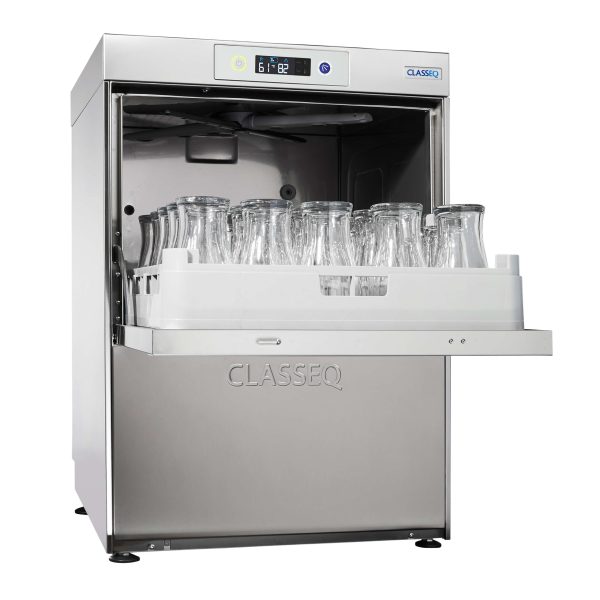

The Classeq G500P-3ph digital glasswasher, is a front-loading, 3 phase, commercial glass washer equipped with a robust 6kW rinse boiler element for enhanced performance. Specifically engineered for the fast-paced ambiance of busy pubs and bars, this machine has the capacity to hold up to 30 pint glasses simultaneously, and its generous entry height of 343mm ensures even the tallest pint glasses can be effortlessly cleaned.

Manufactured

Crafted to rigorous standards in Staffordshire, Classeq glasswashers exemplify top-notch quality and reliability. This exceptionally efficient and industrious washer is a dependable asset in any professional bar setting.

Features

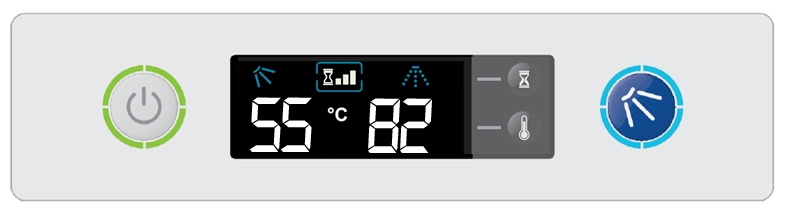

This impressive machine, proudly constructed in the UK, features a digital control panel that clearly displays operating temperatures for both the rinse tank and wash tank. Users can select from 2 or 1-minute wash cycles, facilitated by a straightforward two-button interface that makes operation incredibly user-friendly for staff. Smart software consistently monitors water consumption, temperature, chemical levels, and wash cycle count, providing valuable insights for refining operational effectiveness. The display is colour-coded for easy management of wash cycles: (Amber flashing – Machine heating), (Blue – Machine in cycle), (Green – Machine ready).

The control panel also offers the option to activate temperature interlocks, ensuring precise temperatures are achieved during washing cycles. This feature instils complete confidence in protecting customers from germs and viruses.

Featuring digitally controlled detergent and rinse aid pumps, adjustable in millilitres per litre, this machine ensures meticulous chemical dosing. This precision in chemical distribution is the key to achieving its exceptional cleaning results, as well as presenting a visually appealing, fresh pint of beer.

The G500P-3ph incorporates a pump drainage system, eliminating the need to manually remove a drain plug at the end of the day. With a simple shutdown and the press of a button, the machine automatically drains down. The built-in drain pump also effectively addresses installation challenges that may arise when the waste pipe at your site is positioned too high for gravity drainage

If you’re looking for a hard working pumped drain machine on a three phase electricity supply (12amps per phase) then the Classeq G500P-3ph glasswasher is a great option.

Specifications

Weight 57.6 kg
Dimensions (HWD) 830 × 550 × 605 mm
Amps Required 13A 3 Phase
Basket Size 500 mm
Basket Supplied 2
Brand Classeq
Clear Entry Height 343 mm
Depth Door Open 987 mm
Drain Size 40mm
Empty Weight 44 kg
Finish Stainless Steel
Fully Loaded Weight 64.5 kg
Glasses per Rack 25 – 30 depending on glass size
Min. supply water pressure 2.0 bar
Operating Voltage 380-415V/3N/50Hz
Power Source Hard wired
Total Connected Load 6580 Watts
Water supply connection G3/4” (3/4” BSP)
Wash Tank Element 2 kW
Wash Tank Capacity 14.33 Ltr
Wash Pump Power 0.58 kW
Warranty 1 year Parts and Labour
Rinse Water Consumption at 3 bar 3 Litres / Cycle
Rinse Tank Element 6 kW
Rinse Tank Capacity 7.5 Ltr
Required Water Flow Rate 11 Ltr / min
Gravity Drain No
Built-in Drain Pump Yes
Built-in Rinse Booster Pump No
Built-in Water Softener No
Built-in Detergent Pump Yes
Built-in Rinseaid Pump Yes
